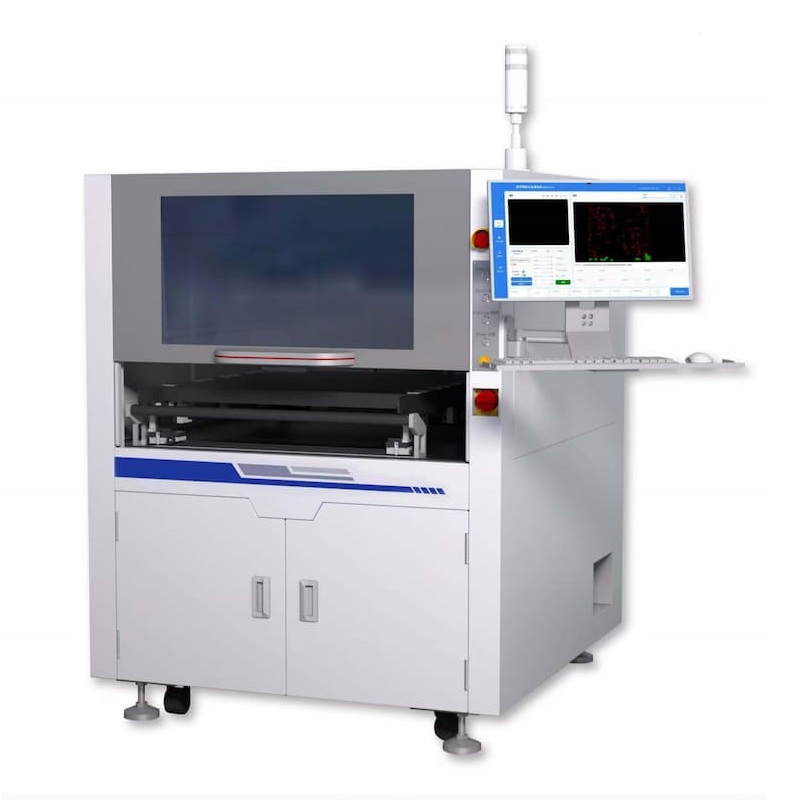

SMI-M8 AI Precision Electroformed Metal Mask Automated Optical Inspection System
Intelligent Defect Inspection for Precision Metal Masks
The SMI-M8 Metal Mask Automated Optical Inspection System is designed for high-accuracy defect detection in precision metal mask production.
It combines advanced machine vision with AI-powered inspection technology.
The system automatically identifies, classifies, and locates defects in real time.
It helps manufacturers achieve higher quality standards and greater production consistency.
Advanced Optical and AI Technology
The equipment utilizes a 20-megapixel industrial camera and dual telecentric lenses.
This configuration captures fine details with minimal optical distortion.
A high-brightness LED lighting system enhances image quality and inspection reliability.
The inspection platform integrates graphic algorithms, traditional algorithms, and AI deep learning models.
CAM files are automatically imported and analyzed.
The system supports Gerber 274X design data formats.
Defect recognition is completed with high speed and accuracy.
High Precision Inspection Performance
The maximum inspection area reaches 620mm × 620mm.
Pixel resolution is as fine as 2.4μm.
Inspection time typically ranges from 100 to 200 seconds per piece.
Defect leakage rates remain below 1% for defects larger than 5μm.
False alarm rates are carefully controlled for stable production performance.
Automatic laser autofocus technology ensures consistent inspection accuracy.
The system also supports SPC analysis for quality traceability.
Defect Detection Capabilities
This AI inspection solution identifies a wide range of critical defects.
Typical defect types include:
- Hole blockages
- Foreign particles
- Pinholes
- Pattern abnormalities
- Position deviations
- Missing features
- Over-cutting defects
- Area inconsistencies
- Surface protrusions
Customizable thresholds help prevent excessive rejection rates.
Inspection standards remain consistent across production lines.
Applications
The Metal Mask Automated Optical Inspection System is widely used in advanced manufacturing industries.
Typical applications include:
- Photovoltaic metal masks
- Semiconductor BGA stencils
- Microelectronics production
- PCB manufacturing
- Electroformed metal masks
- Precision nickel sheet inspection
Customized fixtures support additional metallic materials.
Key Advantages
- AI-powered defect classification
- High-resolution optical imaging
- Automatic CAM data analysis
- Fast non-contact inspection
- SPC quality traceability
- Flexible threshold settings
- Stable vibration-resistant platform
- MES integration support
OEM and Customization Services
Customized pixel resolutions are available.
User permission levels can be configured according to factory requirements.
Barcode scanning modules can be integrated.
Communication protocols and data structures can be customized.
The SMI-M8 Metal Mask Automated Optical Inspection System delivers intelligent inspection, reliable defect detection, and advanced quality control for modern precision manufacturing environments.
